electroplated Diamond CBN Grinding polishing Wheel for Casting, ductile cast iron casting, gray iron casting, grey cast iron, sg iron casting, nodular cast iron cast parts,

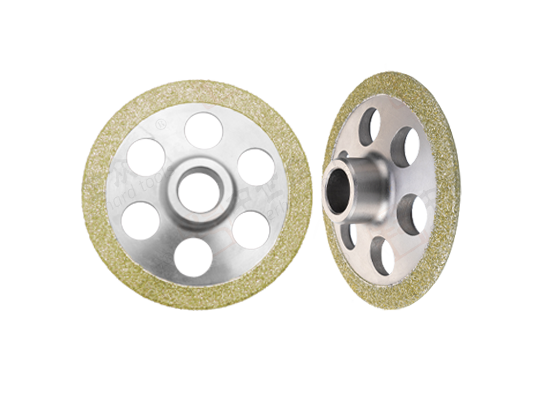

Electroplated Diamond CBN Grinding Wheel for Casting

Diameter (mm):Customizable

Thickness (mm):Customizable

Aperture (mm):Customizable

Material: CBN/Diamond

Product introduction

Electroplated Diamond/CBN grinding wheels (disc) are used for the polishing, cutting, trimming, ragging, burring and grinding of the ferrous metal and nonferrous metal.

Applied Casting Material Sectors

Iron
Ductile cast iron, sg iron, gray cast iron, grey cast iron, nodular cas cast parts
Cast aluminium alloy
Steel
Non-ferrous Metal Castings

Applied Casting Industries

Vehicle Construction
Mechanical Engineering
Steel Industry
The Foundry Industry

Product Parameters

Regular Size for Diamond Grinding Wheel

Diameter D(mm)	Thickness T(mm)	Aperture H(mm)	R.width W(mm)
80	8	25	12.5
355	12	80	15
400	40/34	127/80	12/50
405	12/16/25	80	15
455	12	80	15
455	38.1	38.1	40

Regular Size for CBN Grinding Wheel

Diameter D(mm)	Thickness T(mm)	Aperture H(mm)	R.width W(mm)
200	25	60	12
360	16	80	80

Regular Size for small CBN Grinding tool

Diameter D(mm)	Thickness T(mm)	Aperture H(mm)	R.width W(mm)
20	50	10	—
32	48	10	—
36	145	25	—
40	170	24	—
50	70	M16	—
80	70	M16	—
20	115	M16

CBN wheel can be produced according to your drawing and requirements.
